What Wheels Fit A Toyota GR86, Subaru BRZ or Scion FR-S?

You bought one of the best handling cars anyone sells for the money, and the wheels it came with are the least interesting part of it. Good news: this is one of the easiest platforms in the world to get right, because the specs never changed across the entire run. The part people get wrong is not the bolt pattern. It is what actually stops a wide wheel from bolting on, and the answer is not the fender.

• The hard specs
• What you're starting from
• Daily driver
• Flush
• Aggressive
• Cheat sheet
• FAQ

The hard specs, and they never changed

Toyota and Subaru built this car together and Subaru built it in Gunma, so the wheel hardware reads like a Subaru rather than a Toyota. That matters the moment you go shopping: most Toyotas use a 5x114.3 pattern with M12x1.5 threads, so a set pulled off a Camry or a Corolla will not go anywhere near your car.

The FR-S became the 86 for 2017 when Toyota retired the Scion brand, and nothing underneath changed. A wheel that fits a 2014 BRZ fits a 2019 86 at the same size and offset. If you are shopping used sets, that widens your options considerably, do not skip a listing because the badge is wrong.

Two things worth knowing about that thread pitch. An M12x1.5 lug nut, which is what a lot of open-ended aftermarket sets ship as by default, will start to thread onto your studs. It will feel like it is working. It is not. The engagement is loose and it will not hold torque. Check the box says M12x1.25 before anything gets torqued down. Second, 5x100 and 5x114.3 are both five lug patterns and they are not remotely the same, the bolt circle differs by 14.3mm, so a 5x114.3 wheel does not go on without hub conversion or adapters.

If offset is new to you: offset is how far the mounting face of the wheel sits from the wheel's true centerline, in millimeters. A higher positive number pulls the wheel inboard, under the car. A lower number pushes it outboard, toward the fender lip. Backspacing measures something different, just the distance from the mounting face to the inner edge of the barrel, which tells you about inner clearance and says nothing about how the face sits. Our offset and backspacing calculator will convert between them if you want to check a set you already own.

What you're starting from

Worth knowing your own baseline before you shop, because flush is a distance from where you are now, not an absolute.

Look at what that means for your first step. Almost every car on this list is a 7 or 7.5 inch wheel tucked 48mm inboard. Going to an 8.5 inch wheel at +40mm gains you an inch of width and moves the face 8mm outboard, and that alone closes most of the visual gap people are trying to fix. You do not have to go to a 9.5 to stop looking stock.

One more baseline item. If your car has Brembo brakes, meaning the BRZ Performance Package or the 2019 86 TRD Special Edition, the rules tighten. Those cars shipped on 18s, plenty of aftermarket 17s will not clear the calipers even though they are bigger than the base car's wheels, and caliper clearance depends on spoke shape and barrel profile as much as on diameter. Worth knowing the Performance Package wheels themselves sit on very tight caliper clearance, so if you are moving a set of those onto an FR-S you will likely need a front spacer. With Brembos the answer is genuinely per-wheel, so give us a call rather than guessing.

Daily driver: fill the gap, touch nothing else

This is the setup for someone whose car is also their only car, who wants the fender gap gone and does not want to think about camber, rolling or spacers ever again. Springs do most of the visual work here for the least money, and they keep the factory damping, which on a daily car is not the compromise people make it out to be.

A staggered setup, meaning a wider wheel at the rear than the front, is a genuinely good call on this chassis. The car is rear wheel drive, the rear axle is where the traction argument happens, and the front stays narrow enough to keep steering lock. You could run 9.5 inches at all four corners instead, but at +45mm that much width starts running out of room on the inside, which is the strut clearance problem again.

This one sits right on the boundary between daily and flush, and it is worth pausing on. Square 18x9.5 +38mm with a 255 tire, on springs, no rolling. Dropping from +45mm to +38mm moves the face 7mm further out, which is most of what your eye reads as the difference between lowered and fitted. If you want one number to remember off this whole page, +38mm on a 9.5 is it.

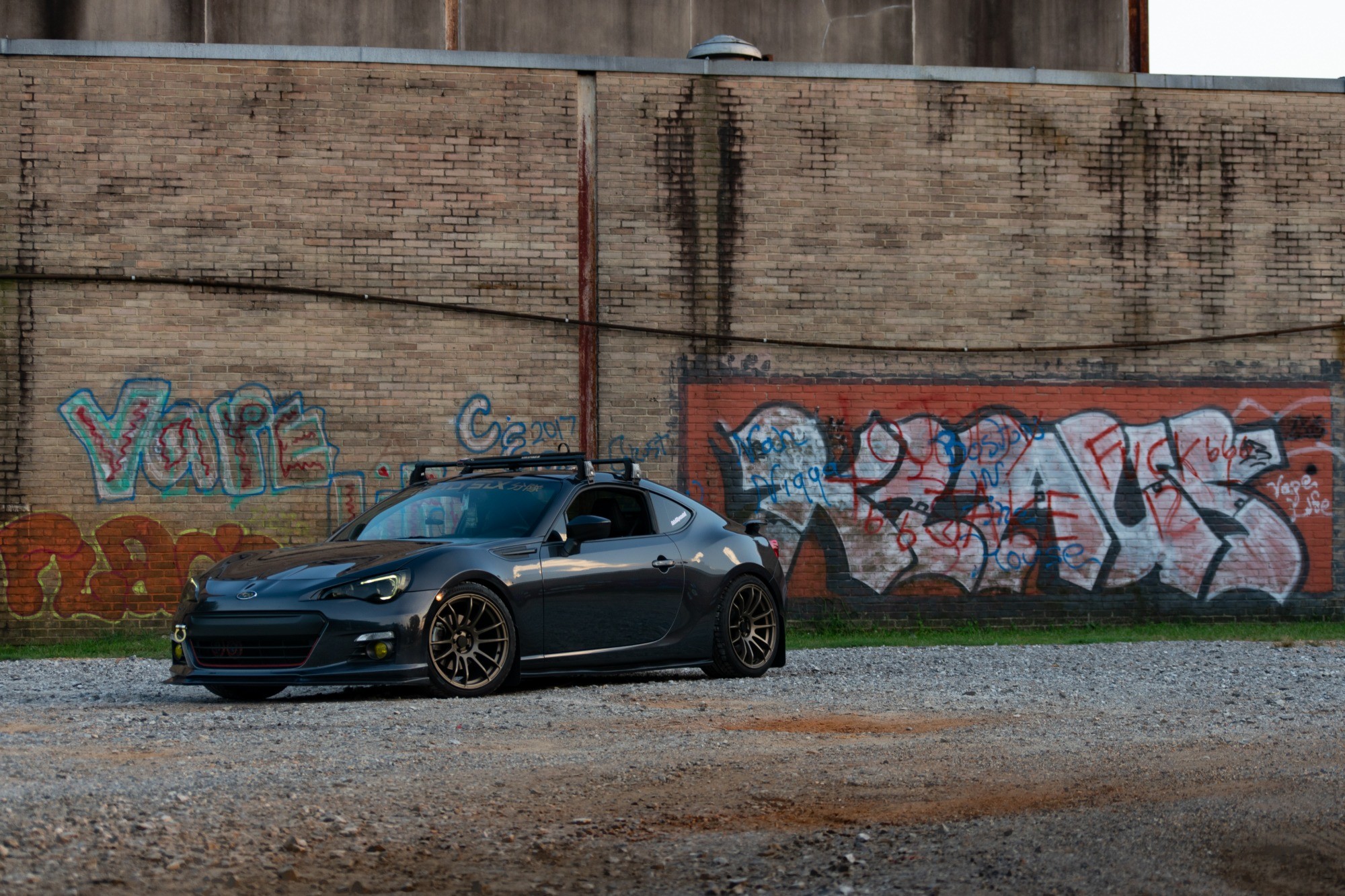

Flush: fender to lip, still usable

Flush means the outer face of the tire sits level with the fender lip, no tuck and no poke. On this chassis that is 18x9.5 territory, and it is where coilovers earn their money for the clearance reason covered above rather than for the drop.

Note what changed between this car and the BRZ above: the offset dropped 3mm to +35mm and the tire came down from a 255 to a 245. Those two moves work together. Pushing the face out and pulling the tire width in keeps the outer shoulder from meeting the lip while the extra poke does the visual work. Full disclosure on the wheels, Anovia is our in-house brand, so weigh our enthusiasm accordingly. Tein is the honest recommendation in that photo regardless, their Flex Z and Street Advanced kits are the two most common budget-to-mid coilovers on this chassis for good reason.

A 255 on a 9.5 is a proper tire, not a stretched one, and on a car making around 200 horsepower that is a sensible place to end up. This is the setup for someone who actually drives the thing. You keep a full contact patch, you keep sidewall to absorb a bad road surface, and you still get the fender filled.

Two wheels we would run on this chassis at these sizes: the Enkei RPF1 and the Konig Hypergram, both light and both made in the 17 and 18 inch sizes above. If you are shopping for the look rather than the scale, the Kansei Tandem and the Anovia Elder both come in 18x9.5.

Aggressive: where the other parts start

Past flush, wheel specs stop being the whole conversation. At this end you are buying camber plates and control arms alongside the wheels, and the tire gets stretched, meaning mounted on a rim wider than the tire's design width so the sidewall pulls inward. Stretch is a look, and it costs you sidewall protection and some grip. Say that out loud before you order, not after.

The Tandem is a six spoke homage to the wheel on the 90s Skyline GT-R, and it has been a default answer on this chassis for years. At +22mm on a 9.5 you are 16mm further out than the flush spec above, which is the whole difference between filling the arch and standing proud of it.

Same wheel spec as the BRZ above, on air instead of coils, and the tire dropped from a 225/40 to a 215/35. Airing all the way down pulls the top of the tire into the arch, so the narrower, shorter tire is what buys the clearance to lay it out. That is the trade you are making when you bag one of these.

An 18x10.5 at -3mm is about as far as this chassis goes on the street. Negative offset means the mounting face sits behind the wheel's centerline, pushing the whole wheel outboard, and at that point the arm and camber hardware in the caption is not optional garnish, it is what physically makes the wheel fit. Nothing wrong with wanting this. Just cost the supporting parts in from the start, because they will outrun the wheels on the invoice.

At a glance

That last row is worth a note if you are going to use the car the way it was designed. Dropping to 17 inches cuts rotating weight and opens up the good 200 treadwear tire sizes, and it costs you nothing on the street either. A 17x9 at +42mm is a bolt-on on a stock car, and at +35mm you gain a few more millimetres of inner clearance if you are on Sachs struts or coilovers with a 245 or wider tire.
